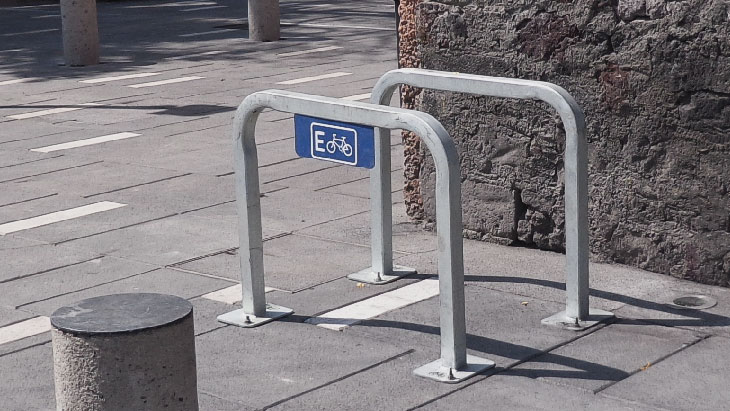

Bike rack 006
Due to its dimensions and elements, the Bike Rack 006 is a very robust product that allows us to secure both the bicycle frame and both tires. This product is suitable for a capacity of two bicycles.
Resource Download


CAD Technical drawing:
PDF Technical file:

Specs

General measures​

Type Capacity 2 bikes o Capacity 2 bikes with signal
Finishes Hot dip galvanized, optional polyester paint
Dimensions 70 cm x 20 cm x 82 cm
Color Galvanized
Manufacturing 2" carbon steel tubular
Author Industrial Design Registration No. 38725
Bike rack 006

Materials.


Steel

The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.



The finishing method is according to the model and part of the product:


hot dip galvanized

Metallization

Zinc Paint​

Continuous galvanized

Electro-galvanized

Polyester paint
