Bike rack 011

  • Finishes
  • Dimensions
  • Color
  • Manufacturing
  • Author
  • Type

Esta combinación no existe.


Finishes:Cold galvanized
Dimensions:50 cm x 3 cm x 75 cm (capacity 2 bikes per single piece and 4 in doubles)
Color:Galvanized
Manufacturing:carbon steel pipe
Author:In compliance with the provisions of article 409 of the Federal Law for the Protection of Industrial Property, it is stated and made public that the product and designs reproduced below are protected before the Mexican Institute of Industrial Property with the registration number 47393 INDUSTRIAL PARKING MODEL FOR BICYCLES, whose owner is RODRIGO VÁZQUEZ ORTEGA; rights that are in force and having all their legal effects.


Términos y condiciones

Bike rack 011

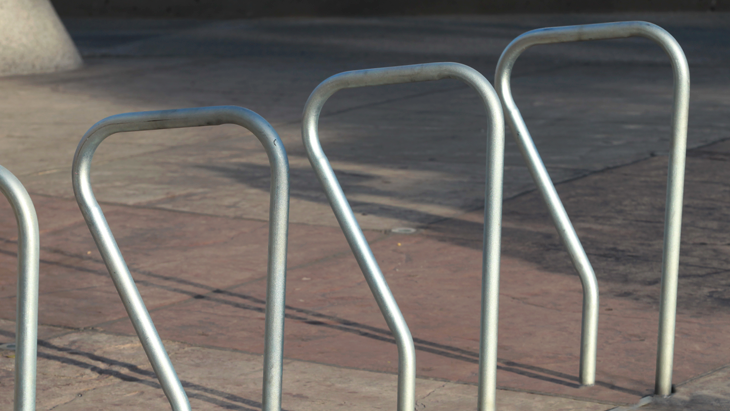

The Ciclopuerto 011 has 2 models, one that allows it to be fixed with a plug to the floor and has a capacity of 4 bicycles, and another version that is drownable to the floor and with a capacity of 2 bicycles.
Resource Download


Archivo CAD:
Archivo pdf:
Ficha sustentabilidad:

Specs

General measures​

Type Capacity 2 bikes / Drownable o Capacity 4 bikes / Tackable
Finishes Cold galvanized
Dimensions 50 cm x 3 cm x 75 cm (capacity 2 bikes per single piece and 4 in doubles)
Color Galvanized
Manufacturing carbon steel pipe
Author In compliance with the provisions of article 409 of the Federal Law for the Protection of Industrial Property, it is stated and made public that the product and designs reproduced below are protected before the Mexican Institute of Industrial Property with the registration number 47393 INDUSTRIAL PARKING MODEL FOR BICYCLES, whose owner is RODRIGO VÁZQUEZ ORTEGA; rights that are in force and having all their legal effects.
Bike rack 011

Materials.


Steel

The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.



The finishing method is according to the model and part of the product:


hot dip galvanized

Metallization

Zinc Paint​

Continuous galvanized

Electro-galvanized

Polyester paint
