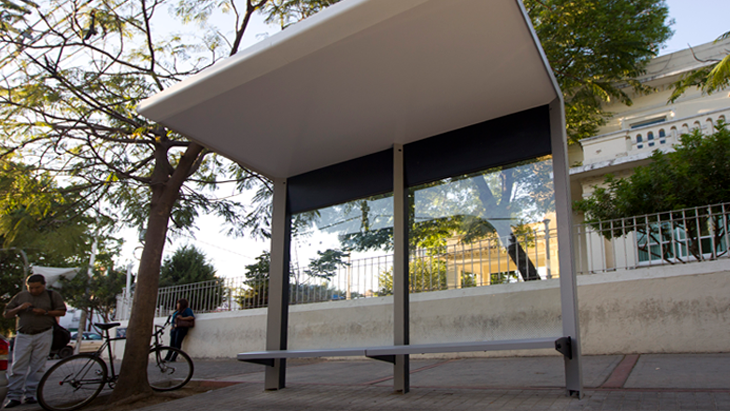

Bus shelter 002
El Parabús BKT-PA-002 es un elemento de espera del transporte publico que permite la visibilidad en todas sus orientaciones, también cuenta con un techo volado con una proyección de 1.5 m. el cual nos permite la sombra en gran parte del día dependiendo de su orientación, su estética, colores y materiales los hacen un elemento el cual encaja perfectamente en el entorno urbano.
Resource Download


Dibujo Técnico CAD:
Archivo Técnico PDF:

Specs

General measures​

Color Gris Oscuro o Gris oscuro y claro
Dimensions 280 cm o 420 cm
Type Respaldo cristal o Sin cristal
Finishes Galvanizado, pintura poliéster
Measures Variables/Revisar ficha PDF
Manufacturing Acero al carbón
Author En cumplimiento a lo dispuesto por el artículo 409 de la Ley Federal de Protección a la Propiedad Industrial se manifiesta y se hace del conocimiento público que el producto y diseños que a continuación se reproducen se encuentran protegidos ante el Instituto Mexicano de la Propiedad Industrial con el número de registro 40962 MODELO INDUSTRIAL DE PARADA DE AUTOBUS MODULAR CON ASIENTO, cuyo titular es RODRIGO VÁZQUEZ ORTEGA; derechos que se encuentran vigentes y surtiendo todos sus efectos legales.
Bus shelter 002

Materials.


Steel

The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.



The finishing method is according to the model and part of the product:


hot dip galvanized

Metallization

Zinc Paint​

Continuous galvanized

Electro-galvanized

Polyester paint
