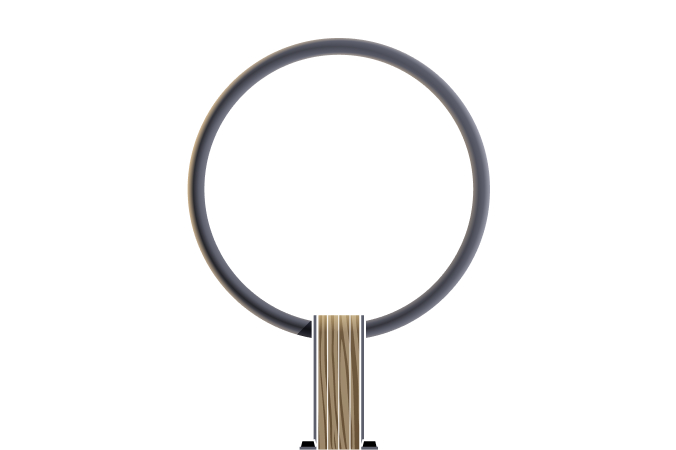

Ring 001
El Aro 001 es un elemento tanto lúdico como de adiestramiento y agilidad para nuestras mascotas caninas. Es un elemento que cuenta con un aro de acero rolado y cuenta con una base de Madera lo cual lo hace un elemento que por sus materiales como colores es adaptable estéticamente en cualquier parque ya sea público o privado.
Resource Download


Dibujo Técnico CAD:
Archivo Técnico PDF:

Specs

General measures​

Fixation Ahogable o Taqueteable
Finishes Galvanizado, pintura poliéster
Measures 92 cm x 10 cm x 67 cm
Color Gris Oscuro
Dimensions 60 cm
Manufacturing Acero al carbón, madera de pino tratamiento CCA
Author Registro Diseño Industrial en trámite
Ring 001

Materials.


Steel

The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.



The finishing method is according to the model and part of the product:


hot dip galvanized

Metallization

Zinc Paint​

Continuous galvanized

Electro-galvanized

Polyester paint
