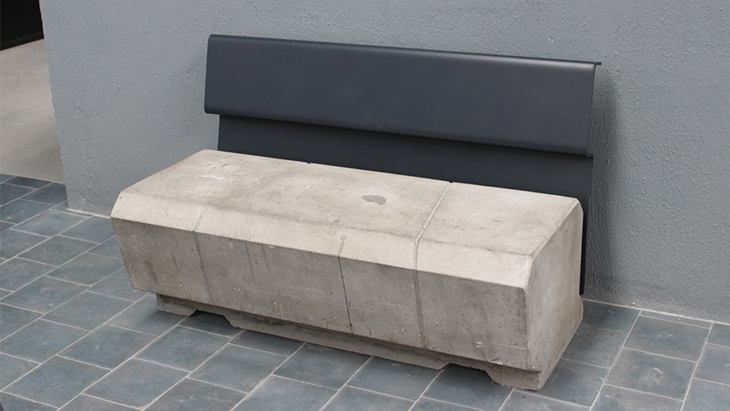

![[BKT-BAN-005/ME/TIPO1/120X65/GRO] Steel Bench 005 (Gris Oscuro, Tipo 1/120 cm x 65 cm)](/web/image/product.product/11359/image_1920/%5BBKT-BAN-005-ME-TIPO1-120X65-GRO%5D%20Steel%20Bench%20005%20%28Gris%20Oscuro%2C%20Tipo%201-120%20cm%20x%2065%20cm%29?unique=dd067bf)
Specs
General measures
| Color | Gris Oscuro o Blanco |
| Type | Tipo 1/120 cm x 65 cm o Tipo 2 /120 cm x 95 cm o Tipo 3/120 cm x 128 cm |
| Finishes | Asiento liso y respaldo galvanizado en frío y pintura poliéster |
| Measures | Variables/Revisar ficha PDF |
| Manufacturing | Concreto polimérico, respaldo con placa de acero |
| Author | Registro Diseño Industrial No. 34757 |
| Back | Metal |
Materials.
Polymer Concrete
Polymeric concrete is a material made with different mineral aggregates (sand, gravel, gravel, quartz, marble) bound by a synthetic resin and reinforced with fiberglass, which makes it an extremely resistant and lightweight material compared to concrete. conventional.
|
Technical specifications.
High compressive strength (Average 800 kg/cm2)
Modulus of Rupture (Average 247 kg/cm2) ASTM C-78
Water absorption (Average 0.136%)
Does not conduct electricity "Dielectric"
Excellent resistance to chemical corrosion by contact with solvents, fuels and oils, etc. |
Maintenance Cleaning: Water with some diluted detergent or degreaser, which does not contain abrasive materials, can be helped by using medium-hard plastic brushes (avoid metal ones, sandpaper or abrasive discs). It is also possible to use solvents. |
Materials.
Steel
The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.
|
Most of steel parts are processed as follows:
CNC laser cutting
CNC bending
Galvanizing - different methods
Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)
Achromatic passivation (cleaning with distilled water)
Drying at a temperature of 190oC for 10-20 minutes
Electrostatic powder coating application |
Metallic finishes
All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow. The finishing method is according to the model and part of the product: |

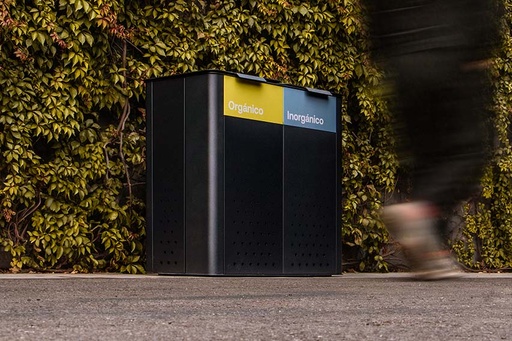

![[BKT-BA-004/ME/DOB/PIS/ROT] Basurero 003 Metal (Labeled type of garbage, Doble)](/web/image/product.product/16373/image_512/%5BBKT-BA-004-ME-DOB-PIS-ROT%5D%20Basurero%20003%20Metal%20%28Labeled%20type%20of%20garbage%2C%20Doble%29?unique=e4aca8b)
