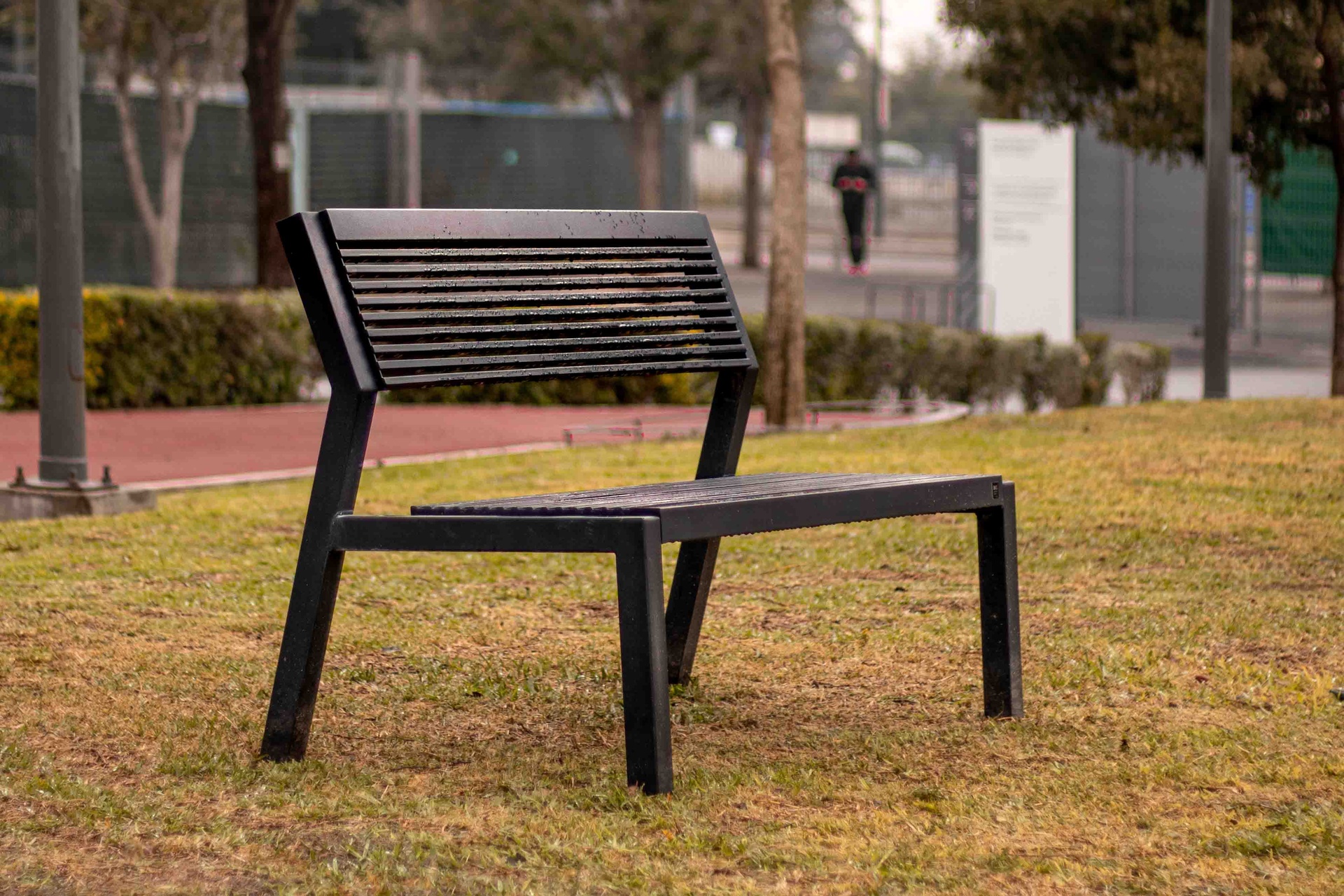

Steel Bench 007
La Banca 007 metálica es una pieza inspirada en la sencillez de una abstracción del primer trazo hecho al idear una banca. Esta fabricada en acero al carbón galvanizado con perfilería robusta, asiento y respaldo son de rejilla metálica; los ángulos y líneas resultantes la hacen una banca cómoda y versátil al momento de insertarse en espacios tradicionales o contemporáneos. Cuenta con dos versiones, 65 y 130 cms, las que pueden usarse combinadas para formar conjuntos. Su armado es muy simple, a través de ensambles que quedan ocultos se unen laterales al asiento y respaldo con tornillería de seguridad. Para su instalación se requiere hacer 4 perforaciones en piso y se coloca ya sea varilla roscada en anclaje químico o atornillado con taquete mecánico.
Resource Download


CAD Technical drawing:
PDF Technical file:

Specs

General measures​

Dimensions 130 cm o 65 cm
Type Without armrests o With armrests
Finishes Cold Galvanized and Polyester Paint
Dimensions (130 cm/65 cm) x 65 cm x 80 cm
Color Dark gray
Manufacturing Carbon steel structure
Author Process in process - File MX/f/2021/00237
Steel Bench 007

Materials.


Steel

The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.



The finishing method is according to the model and part of the product:


hot dip galvanized

Metallization

Zinc Paint​

Continuous galvanized

Electro-galvanized

Polyester paint
