Steel Seat 003

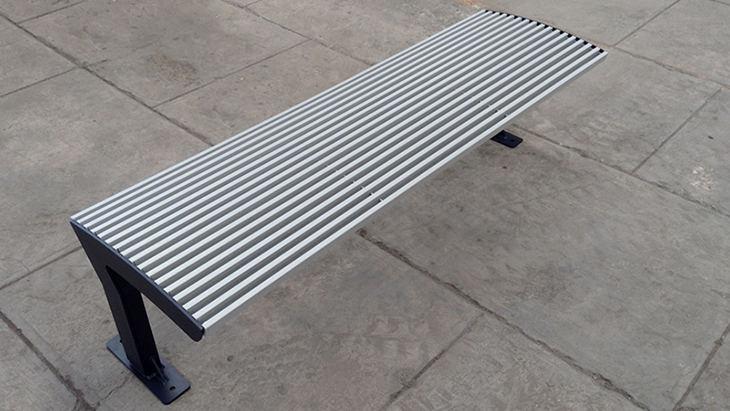

Este asiento simple y muy funcional para sitios de corta estadía. Su sistema de instalación es por medio de anclaje ahogado en concreto, sus piezas laterales son placas de acero galvanizado con acabado en pintura poliéster, ambas piezas sujetan un asiento hecho en estructura metálica ventilada para reducir la carga calórica y sumamente resistente.
Resource Download

Dibujo Técnico CAD:
Archivo Técnico PDF:


General measures​

Color Gris Oscuro o Gris oscuro y claro
Fixation Ahogable o Taqueteable
Material Metal
Finishes Galvanizado en Frio y Pintura Poliéster
Measures 150 cm x 43 cm x 46 cm
Dimensions 150 cm
Manufacturing Acero al carbón
Author Registro Diseño Industrial No. 42265
Steel Seat 003



The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.

The finishing method is according to the model and part of the product:

hot dip galvanized


Zinc Paint​

Continuous galvanized


Polyester paint
