Bench 001 / Wood
Especificaciones
| Dimensions | 94 cm or 60 cm or 180 cm |
| Color | Dark gray or Dark green or Oxide or Champagne |
| Material | Aluminum, carbon steel and tropical wood or Aluminum, Stainless Steel, Wood |
| Type | Without armrests or With armrests |
| Dimensions | 180 cm / 60 cm x 79 cm x 58 |
| Finishes | Polyester paint for electrostatic application |

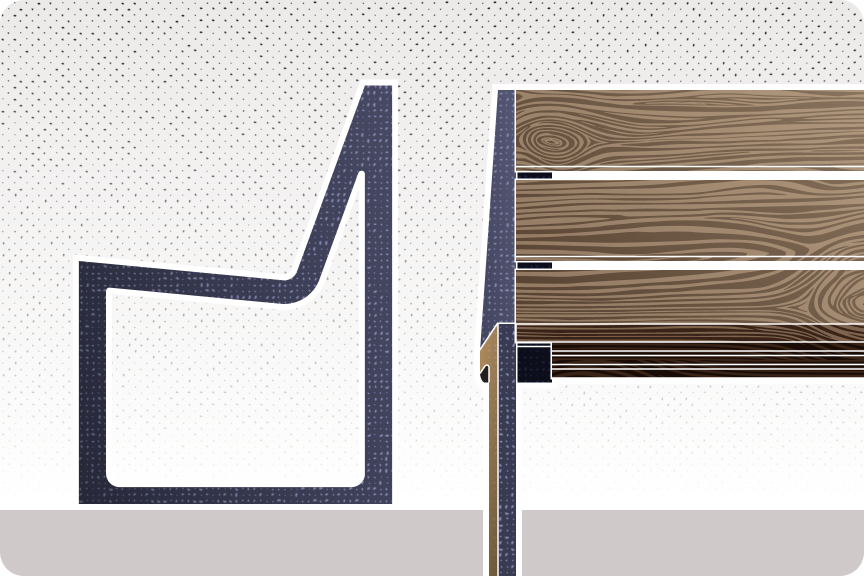

Croquis
Materiales.
Madera Tropical
It needs basic maintenance to maintain its factory appearance, however with low maintenance the wood ages well without losing structural properties, as it is highly resistant to rot, mold, fungus, insects, and is highly vandal resistant. Its density of 890 kg/m3 does not facilitate the creation of gravel and notches.
| One of the natural properties of tropical woods, including jatoba, is their gradual thickening and the opening and closing of pores depending on environmental conditions. The opening of pores is mainly manifested on the front surfaces in the form of cracks, or on the surface in the form of long cracks. It is a phenomenon that depends on environmental conditions (temperature, air humidity), but in no case reduces the quality of the wood or prevents its use. Jatoba is also characterized by a wide variety of shades.
|
In the case of tropical jatoba wood used outdoors, the
no constituyen un defecto y no se
are not considered to be the subject of a claim.
In the case of tropical wood jatoba used outdoors, the bending or twisting tolerance is 5mm / 1m in length. |
Materiales.
Fundición de Aluminio
The aluminum structures are made of AlMg3 material, suitable for outdoor use. A stainless steel granulate is blown onto the surface of the cast aluminum, which limits the occurrence of corrosion.
| The use of an aluminum casting without powder coating is very common. is very common; over time, the entire surface of the cast part acquires a uniform shade. surface of the cast part acquires a uniform shade. The appearance of aluminum oxide The appearance of weather-induced aluminum oxide is a common phenomenon and is therefore is a common occurrence and is therefore not considered a subject of complaint. not considered to be a subject of complaint. | If the customer wants to avoid rust, it is advisable to apply a powder is convenient to apply to the surface a coat of powder paint. |
Materiales.
Steel
The basic material used for the manufacture of most of the components of the products is steel of class 11373 (S235JR) or better quality. Tolerances are in accordance with ISO 2768-1 “m”, quality of imperfections in accordance with EN 25817. «C».
|
La mayoría de piezas de acero se
procesan de la siguiente manera:
CNC laser cutting
CNC bending
Galvanizing - different methods
Degreasing by washing at 80oC - iron phosphating (corrosion protection)
Pasivación acromática (limpieza con agua destilada)
Secado a temperatura de 190oC durante 10-20 minutos Aplicación electrostática de pintura en polvo |
Acabados metálicos
All our products go through a series of processes according to the type of material and use, in order to provide the highest quality and durability the highest quality and durability possible; the combination of these processes is a particular processes is a particular art achieved in years of experience, that only the right technology and raw material allow it. The finishing method is according to
to the model and part of the product: Galvanizado en caliente Metalización Pintura Zinc Galvanizado continuo Electro-galvanizado Pintura poliéster |
