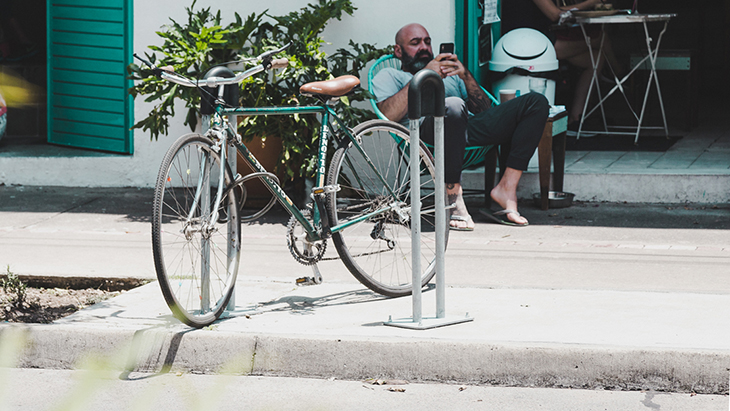

[BKT-CP-003/GAL] Bike rack 003
El ciclopuerto 003 es un producto muy versatil ya que por su tamaño compacto permite que cuando no esta en uso abarque el menor espacio publico posible, su estetica se funde en el entorno urbano y cuenta en su parte superior con una superficie de hule que lo hace suave al contacto con nuestra bicicleta. Este producto es apto para una capacidad de 2 bicicletas.
Resource Download

CAD Technical drawing:
PDF Technical file:


General measures​

Finishes hot dip galvanized
Dimensions 30 cmx 20 cm x 92 cm
Color Galvanized
Manufacturing Steel cycle port with vulcanized rubber
Author Industrial Design Registration No. 31398
Type Capacity 2 bikes
[BKT-CP-003/GAL] Bike rack 003



The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.

The finishing method is according to the model and part of the product:

hot dip galvanized


Zinc Paint​

Continuous galvanized


Polyester paint
