[BKT-CP-003/GAL] Bike rack 003

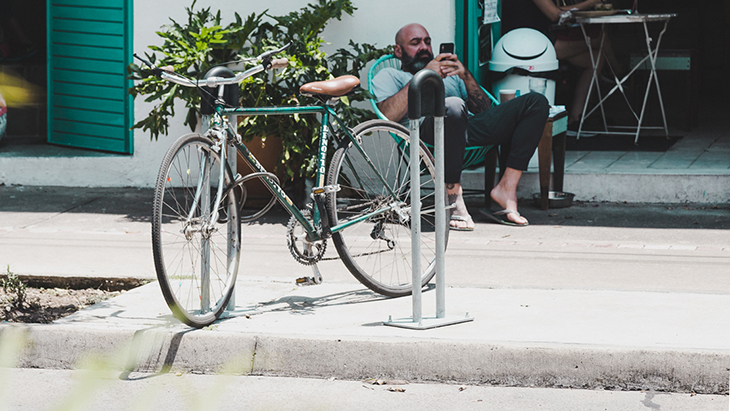

The 003 cycle port is a very versatile product since its compact size allows it to cover the smallest possible public space when not in use. Its aesthetics blend into the urban environment and it has a rubber surface on its upper part that makes it soft in contact with our bicycle. This product is suitable for a capacity of 2 bicycles.
Resource Download


CAD Technical drawing:
PDF Technical file:

Specs

General measures​

Finishes hot dip galvanized
Dimensions 30 cmx 20 cm x 92 cm
Color Galvanized
Manufacturing Steel cycle port with vulcanized rubber
Author Industrial Design Registration No. 31398
Type Capacity 2 bikes
[BKT-CP-003/GAL] Bike rack 003

Materials.


Steel

The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.



The finishing method is according to the model and part of the product:


hot dip galvanized

Metallization

Zinc Paint​

Continuous galvanized

Electro-galvanized

Polyester paint
