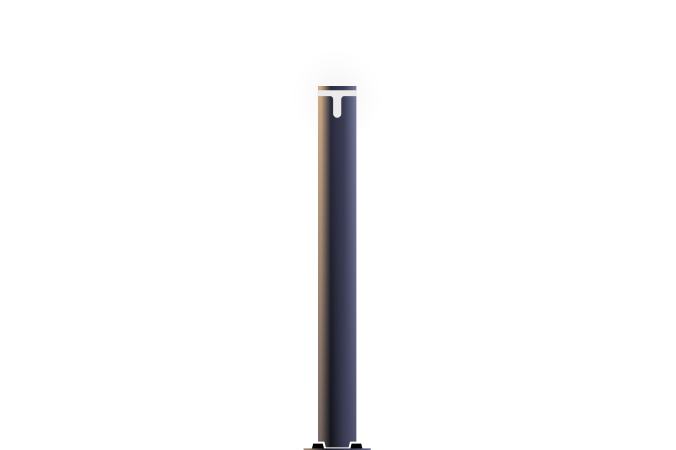

Bollard 008
El Bolardo es una pieza fundamental en el diseño urbano que requiere de la protección a peatones, así como para el ordenamiento vial. Su diseño responde a lograr una pieza esbelta sin perder robustez, guarda sus proporciones desde la parte superior hasta su cuerpo fabricado en cédula 30. El Bolardo se entrega con cinta reflejante 3M grado ingeniería.
Resource Download

Dibujo Técnico CAD:
Archivo Técnico PDF:


General measures​

Fixation Ahogable o Taqueteable
Type Con iluminación o Sin iluminación
Finishes Galvanizado, pintura poliéster
Measures 9 cm diámetro x 95 cm
Color Gris Oscuro
Manufacturing Tubo cédula 30
Author Christian Barajas, Diego Briseño, Joaquín Briseño
Bollard 008



The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.

The finishing method is according to the model and part of the product:

hot dip galvanized


Zinc Paint​

Continuous galvanized


Polyester paint
