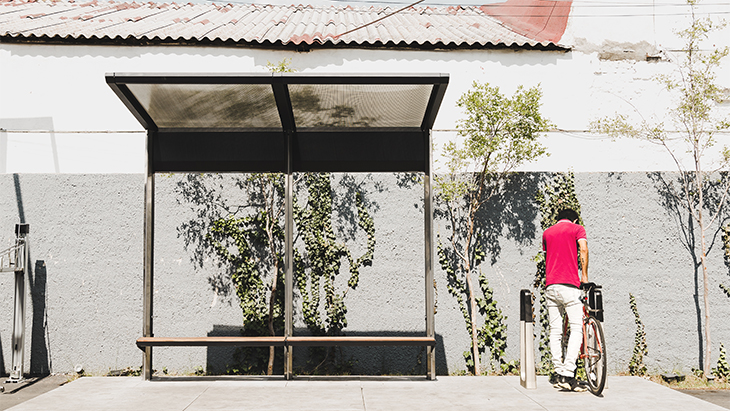

Bus shelter 003
El Parabús BKT-PA-003 es un sistema de elementos configurables
y escalables que responden a las necesidades de espacio y demanda de la ciudad y sus habitantes. El sistema completo integra distintos componentes que permiten configurar un parabús según las necesidades y posibilidades que se presenten en cada caso
Resource Download


Dibujo Técnico CAD:
Archivo Técnico PDF:

Specs

General measures​

Dimensions 280 cm o 420 cm
Accessories No lighting o With lighting
Type Respaldo cristal o Sin Respaldo
Billboard position Paralelo o Perpendicular o Sin Mupi o 2 Mupis, 1 Perpendicular y 1 Paralelo
Seats 2 asientos inox o 3 asientos inox o Sin Asientos
Roof Crista o Aluminio Compuesto
Finishes Galvanizado, pintura poliéster
Measures Variables/Revisar ficha PDF
Manufacturing Acero al carbón
Author Registro Diseño Industrial: MX/f/2020/001602 - MX/f/2020/001601
Bus shelter 003

Materials.


Steel

The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.



The finishing method is according to the model and part of the product:


  • hot dip galvanized
  • Metallization
  • Zinc Paint​
  • Continuous galvanized
  • Electro-galvanized
  • Polyester paint
