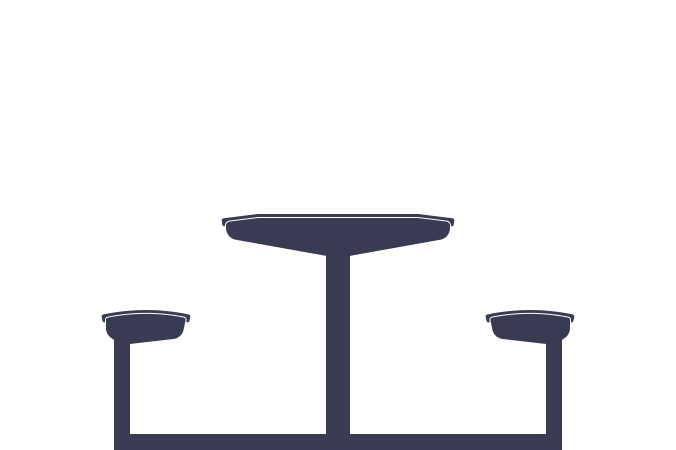

|Type||Mesa + 2 asientos/Ahogable o Unida/Varilla|
|Finishes||Galvanizado en Frio y Pintura Poliéster|
|Measures||150 cm x 168 cm x 73 cm|
|Manufacturing||Estructura de acero al carbón y madera tropical|
|Author||Diseño industrial No. 45971 En cumplimiento a lo dispuesto por el artículo 409 de la Ley Federal de Protección a la Propiedad Industrial se manifiesta y se hace del conocimiento público que el producto y diseños que a continuación se reproducen se encuentran protegidos ante el Instituto Mexicano de la Propiedad Industrial con el número de registro 45971 MODELO INDUSTRIAL DE MESA PARA DÍA DE CAMPO, cuyo titular es RODRIGO VÁZQUEZ ORTEGA; derechos que se encuentran vigentes y surtiendo todos sus efectos legales.|
It needs basic maintenance to maintain its factory appearance, however with low maintenance the wood ages gracefully without losing structural properties, as it is highly resistant to rot, mold, fungus, insects, and is highly vandal resistant. Its density of 890 kg/m3 does not facilitate the creation of engravings and notches.
|One of the natural properties of tropical woods, including jatoba, is their gradual thickening and the opening and closing of pores depending on the surrounding conditions. The opening of pores is manifested mainly on the front surfaces in the form of cracks, or on the surface in the form of long slits. It is a phenomenon that depends on the environmental conditions (temperature, humidity of the air), in no case does it reduce the quality of the wood or prevent its use. Jatoba is also characterized by a wide variety of shades.
The natural phenomena indicated do not constitute a defect and are not considered the subject of a claim.
In the case of tropical jatoba wood used outdoors, the bending or torsion tolerance is 5mm / 1m in length
The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.
Most of steel parts are processed as follows:
CNC laser cutting
Galvanizing - different methods
Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)
Achromatic passivation (cleaning with distilled water)
Drying at a temperature of 190oC for 10-20 minutes
All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.
The finishing method is according to the model and part of the product:
hot dip galvanized
