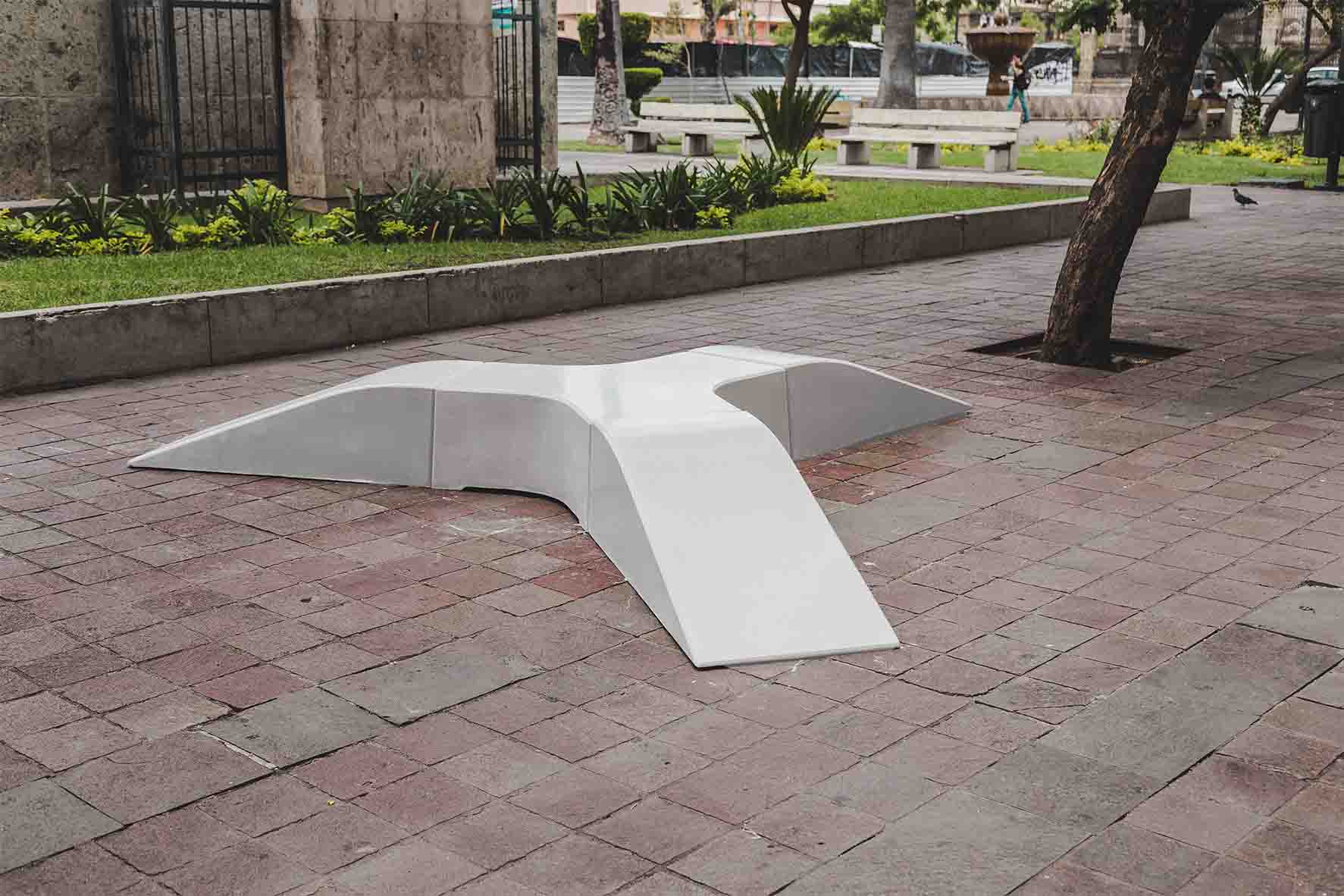

Seat 007/Ramp
Esta piezas forma parte de un sistema modular lúdico compuesto de 3 piezas fabricadas en concreto polimérico, pudiéndose adquirir por separado cada una ellas. La rampa puede funcionar por su propia cuenta o conectarse a la pieza central, puede colocarse unida a otras piezas para formar limites y zonas de juego. Aunque es opcional para casos específicos, estas bancas por su peso no requieren de anclaje mecánico o químico, se colocan solo sobre piso.
Resource Download


CAD Technical drawing:
PDF Technical file:

Specs

General measures​

Color White o Gray BKT 3
Material Polymer concrete
Finishes smooth finish
Dimensions 122 cm x 33 cm x 53 cm
Manufacturing Polymeric concrete
Author Public domain design
Type Ramp
Seat 007/Ramp
Materials

Polymer Concrete

Polymeric concrete is a material made with different mineral aggregates (sand, gravel, gravel, quartz, marble) bound by a synthetic resin and reinforced with fiberglass, which makes it an extremely resistant and lightweight material compared to concrete. conventional.

Technical specifications.

    High compressive strength (Average 800 kg/cm2)

    Modulus of Rupture (Average 247 kg/cm2) ASTM C-78

    Water absorption (Average 0.136%)

    Does not conduct electricity "Dielectric"

    Excellent resistance to chemical corrosion by contact with solvents, fuels and oils, etc.


Maintenance

Cleaning: Water with some diluted detergent or degreaser, which does not contain abrasive materials, can be helped by using medium-hard plastic brushes (avoid metal ones, sandpaper or abrasive discs). It is also possible to use solvents.

Coatings: Application of paste and/or paint to rehabilitate the benches due to deterioration derived from the conditions of exposure to the environment and service to which they are subjected. (Contact our sales team

Polished: To revive the color and leave the surface smooth.
