Signaling 001

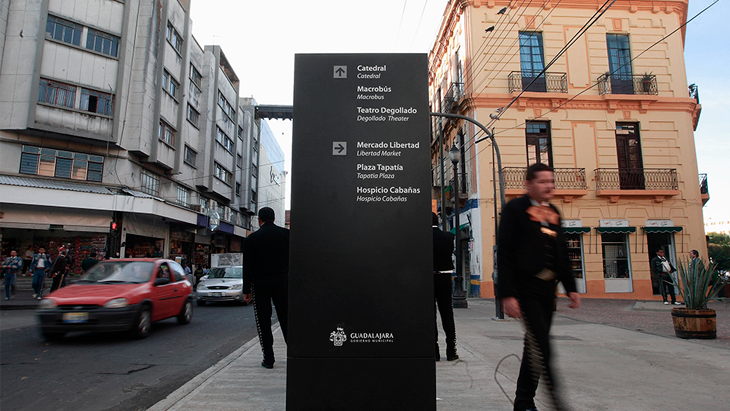

La señalización 001 es un elemento informativo ideal para el entorno urbano. Su diseño sencillo lo vuelve útil en cualquier contexto y sus proporciones totémicas lo vuelven identificable en el entorno urbano. Sus tres distintos tamaños permiten aprovechar el espacio público y configurar información de interés para el transeúnte.
Resource Download


CAD Technical drawing:
PDF Technical file:

Specs

General measures​

Dimensions 45 cm o 90 cm o 25 cm
Finishes Cold Galvanized and Polyester Paint
Dimensions Measurements according to model
Color Dark gray
Manufacturing carbon steel
Author Industrial Design Registration in process
Signaling 001

Materials.


Steel

The basic material used for the manufacture of most product components is grade 11373 (S235JR) or better grade steel. The tolerances comply with the ISO 2768-1 «m» standard, quality of imperfections according to the EN 25817 «C» standard.

Most of steel parts are processed as follows:

    CNC laser cutting

    CNC bending

    Galvanizing - different methods

    Degreasing by washing at 80oC–iron phosphating (anti-corrosion protection)

    Achromatic passivation (cleaning with distilled water)

    Drying at a temperature of 190oC for 10-20 minutes

    Electrostatic powder coating application​
metallic finishes

All our products go through a series of processes according to the type of material and use, in order to provide the highest possible quality and durability; The combination of these processes is a particular art achieved in years of experience, which only the right technology and raw material allow.



The finishing method is according to the model and part of the product:


hot dip galvanized

Metallization

Zinc Paint​

Continuous galvanized

Electro-galvanized

Polyester paint
