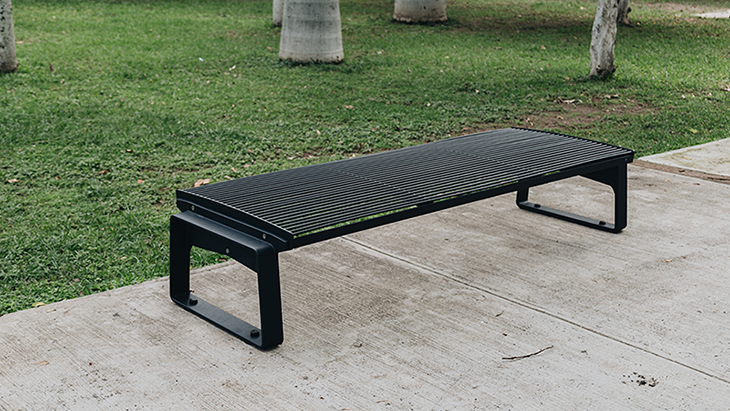

![[BKT-AS-002/ME/150/GRO] Seat 002 / Steel (150 cm)](/web/image/product.product/11498/image_1920/%5BBKT-AS-002-ME-150-GRO%5D%20Seat%C2%A0002%20-%20Steel%20%28150%20cm%29?unique=f35372e)
Seat 002 / Steel
Especificaciones
| Dimensions | 150 cm or 210 cm |
| Manufacturing | Cast aluminum AA38 and carbon steel |
| Finishes | Cold Galvanized and Polyester Paint |
| Dimensions | (210 cm/150 cm) x 72 cm x 42 cm |
| Color | Dark gray |
| Author | Industrial Design Registration No. 44844 |
Croquis
Materiales.
Fundición de Aluminio
The aluminum structures are made of AlMg3 material, suitable for outdoor use. A stainless steel granulate is blown onto the surface of the cast aluminum, which limits the occurrence of corrosion.
| The use of an aluminum casting without powder coating is very common. is very common; over time, the entire surface of the cast part acquires a uniform shade. surface of the cast part acquires a uniform shade. The appearance of aluminum oxide The appearance of weather-induced aluminum oxide is a common phenomenon and is therefore is a common occurrence and is therefore not considered a subject of complaint. not considered to be a subject of complaint. | If the customer wants to avoid rust, it is advisable to apply a powder is convenient to apply to the surface a coat of powder paint. |
Materiales.
Steel
The basic material used for the manufacture of most of the components of the products is steel of class 11373 (S235JR) or better quality. Tolerances are in accordance with ISO 2768-1 “m”, quality of imperfections in accordance with EN 25817. «C».
|
La mayoría de piezas de acero se
procesan de la siguiente manera:
CNC laser cutting
CNC bending
Galvanizing - different methods
Degreasing by washing at 80oC - iron phosphating (corrosion protection)
Pasivación acromática (limpieza con agua destilada)
Secado a temperatura de 190oC durante 10-20 minutos Aplicación electrostática de pintura en polvo |
Acabados metálicos
All our products go through a series of processes according to the type of material and use, in order to provide the highest quality and durability the highest quality and durability possible; the combination of these processes is a particular processes is a particular art achieved in years of experience, that only the right technology and raw material allow it. The finishing method is according to
to the model and part of the product: |
